ACP Vibratory Pipe Rerounders

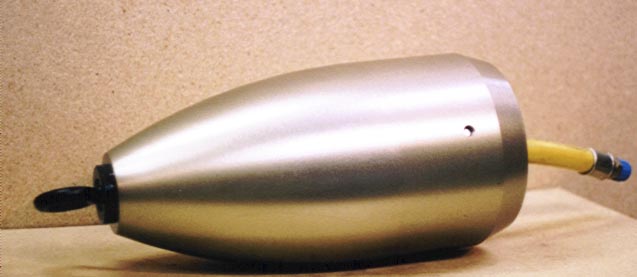

Pipe Rerounders for PVC Pipe
Restores deflected sewer pipes back to within tolerances.
Patented efficient vibratory design.
Pneumatic vibrator.
A powerful high frequency vibration consolidates and stabilizies material around the pipe to keep deflections from returning.
Only smooth contoured surfaces come in contact with the pipe.

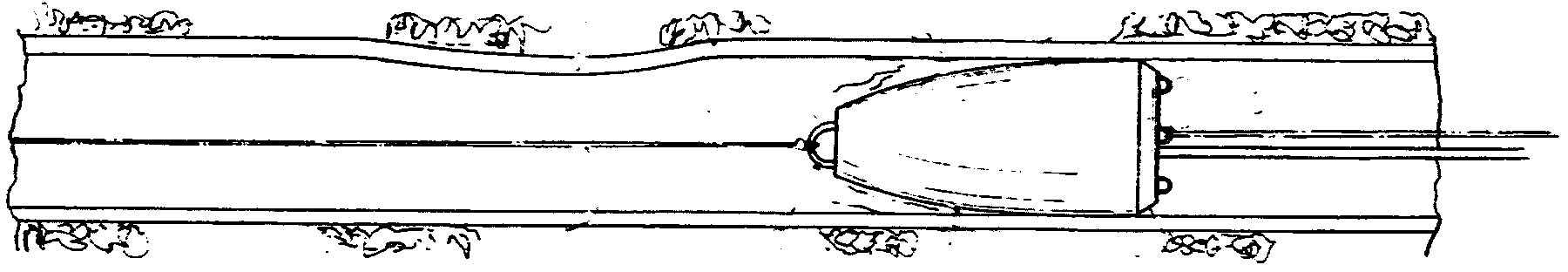

Vibration is transmitted radially. There is no impact force driving the rerounder forward.
With vibration doing most of the work, 300 lb. to 2000 lb. of pulling force is usually adequate. In most cases 500 lb. is enough.
With this design there should be no damage to the pipe if the sewer line is clean.
8 inch and larger rerounders have an aluminum outer housing that is hard coat anodized.
4 and 6 inch rerounders are all steel construction.
Vibration Technology

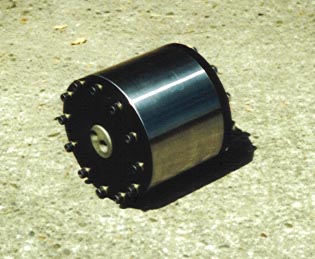

The 8 inch through 15 inch rerounders use this heavy duty vibrator assembly.
This design has an efficient combination of power, frequency, and amplitude to flow and displace the surrounding bedding material.
By flowing granular particles together, the density of the pipe zone material is increased.
This same technology has been proven very effective in our sag correction systems.
Pipe Pulley - Pipe Roller
For 8 inch and larger pipe.

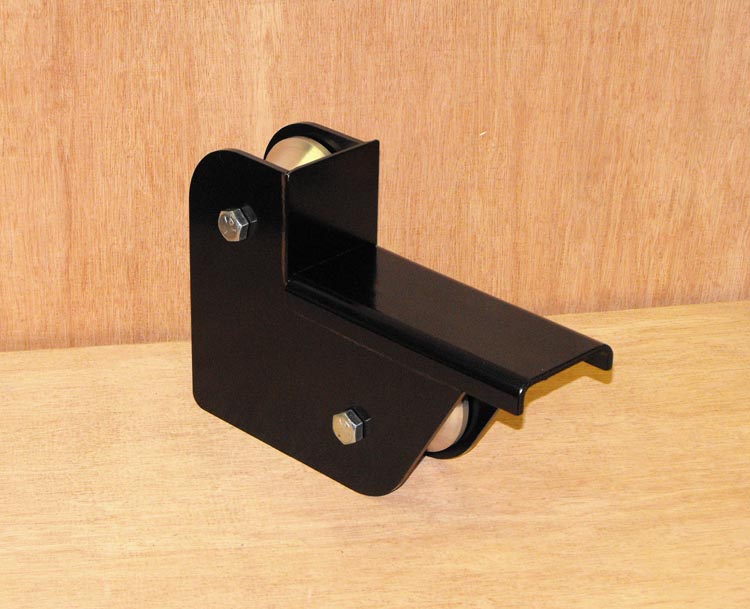

The pipe pulley on the right has cast iron pulleys that accepts pull ropes up to 5/8 inch diameter or small cable.
The pipe roller on the left has wider UHMW rollers to accommodate pull back lines and air hoses.
Air Swivel / Oiler / Air Filter

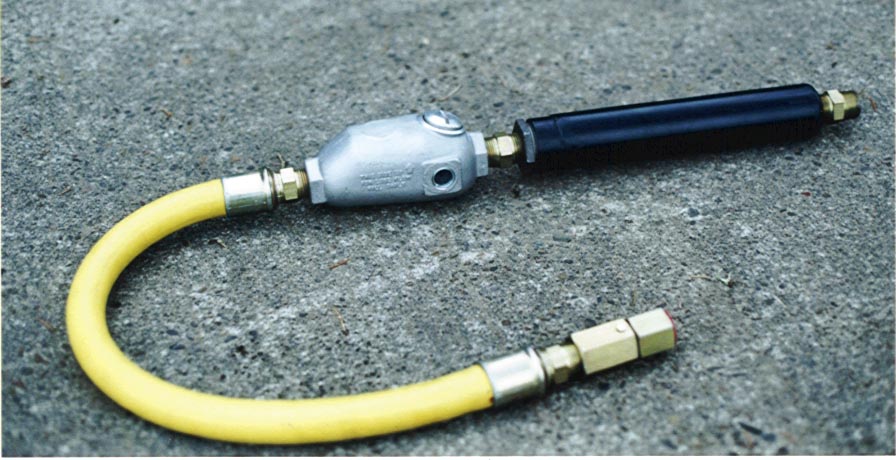

The air swivel, oiler, filter, and whip hose assembly connects at the rerounder.
Torque from the vibrator causes the rerounder to rotate. The air swivel is necessary to prevent the rotation from twisting and kinking the air hose.
Concentric Pullback Swivel

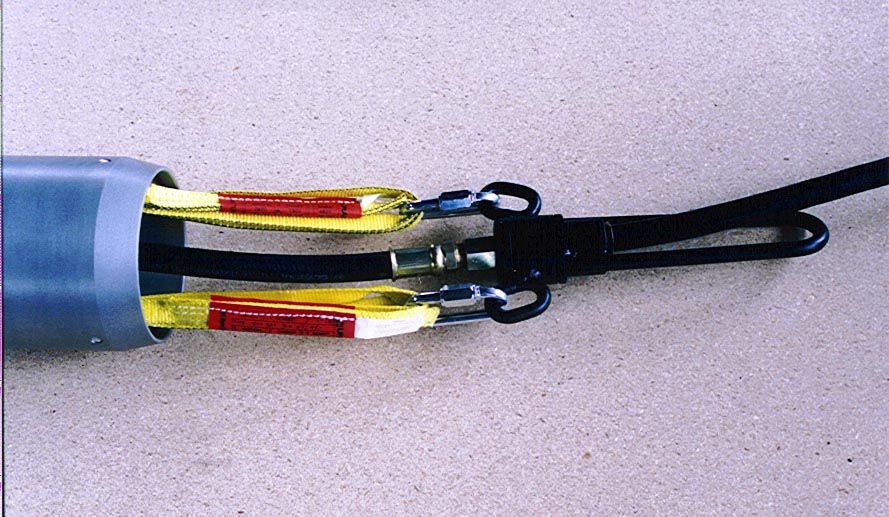

The 8 inch rerounder uses a separate pullback swivel as shown. The pullback swivels on the 10 inch and larger rerounders are built-in to the rerounder.
The air hose swivel fits in the center opening of the swivel for the pullback straps. This allows the rerounder to rotate without wraping the pullback line around the air hose.
SPECIFICATIONS |
||||||
| Model | 430 | 630 | 855 | 1055 | 1255 | 1555 |
| Pipe Size | 4 in. | 6 in. | 8 in. | 10 in. | 12 in. | 15 in. |
| Air Consumption | 40 cfm @ 80-100 psi | 60 cfm @ 80-100 psi |
||||
| Minimum Air Hose Size | 3/4 inch for long lengths |
|||||
| Approximate Weight | 27 lb. | 56 lb. | 70 lb. | 89 lb. | 110 lb. | 137 lb. |
